COMPACT BALL VALVE M/F
| NO | PART | MATERIAL | QTY |
|---|---|---|---|
| 1 | HANDLE | PVC | 1 |
| 2 | NAIL | 304 | 1 |
| 3 | BALL | PP | 1 |
| 4 | STEM O-RING | EPDM | 1 |
| 5 | BODY | PVC | 1 |
| 6 | SEAL SEAT | TPE | 2 |
| Size | DN | D | L | L1 | T | H |
|---|---|---|---|---|---|---|
| 1 1/2" X 1 1/2" | 40 | 35 | 139 | 107 | 24 | 59 |
| 2" X 2" | 50 | 46 | 151 | 139 | 30 | 69 |

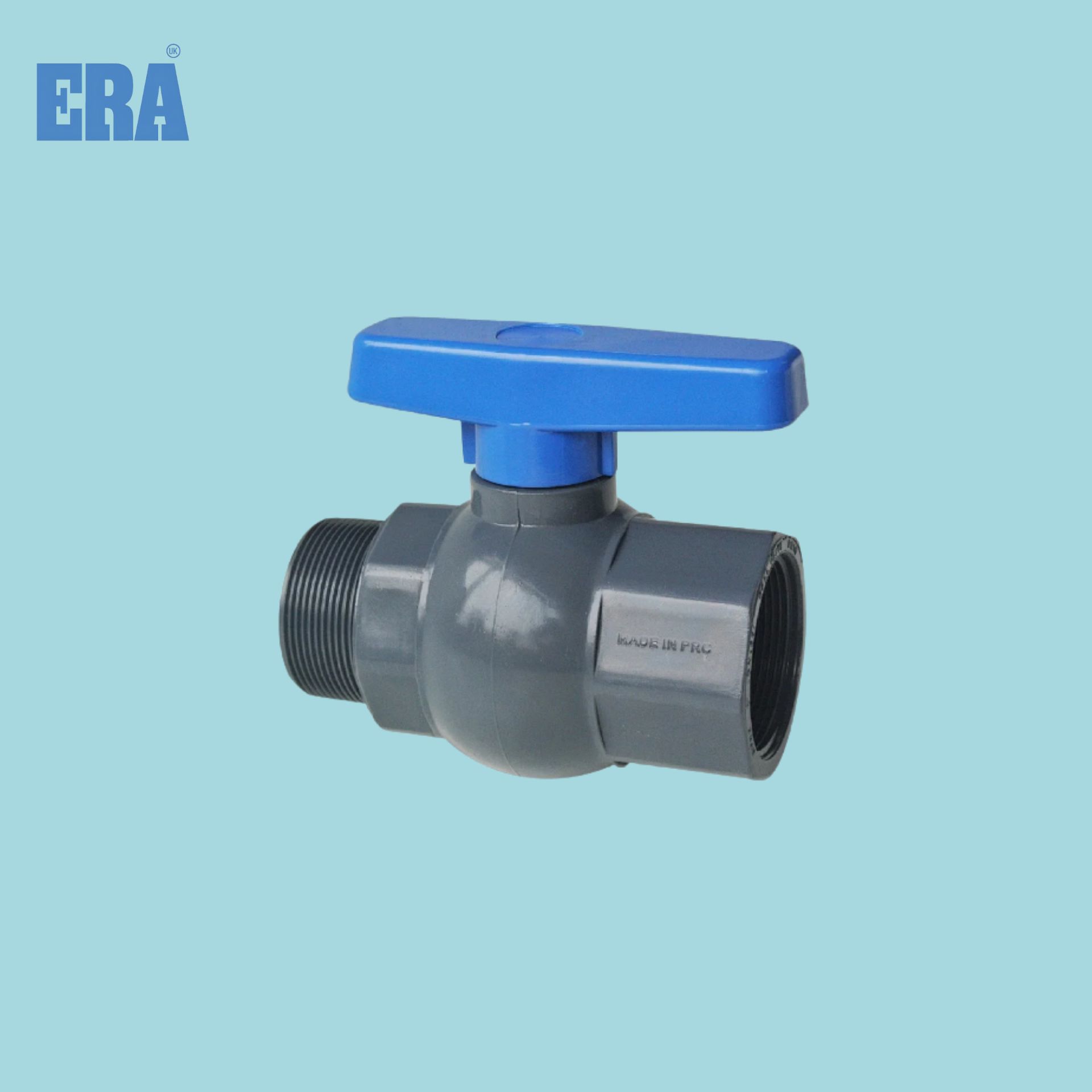

PVC Ball Valve Specification
Full port allowing maximum flow and minimum pressure drop or turbulence
Easy turn handle means no pliers or breakage while turning on/off, and it's replaceable!
Specification:
| Material | PVC |
|---|---|
| Description | PVC COMPACT BALL VALVE M/F |
| Standard | F1970 |
| Temperature | Max 82.2℃ / 180℉ |
| Working Pressure | PN10, 10Bar, 1.0Mpa |
| Size | 1/2''-4'' |
| Certificate | NSF/UPC |
| Connection | Socket or Thread |
| Color | Light Grey |
Scope:
Please note - as temperature increases, working pressure decreases, the optimal working pressure for PVC valves is 150 psi at 73℉ (22℃).
Our PVC ball valves are not only durably and made from a heavy duty material - but also a very affordable and economic option to your project or service need.
Advantages of PVC Ball Valve:
- Fluid resistance is small, ball valve is the smallest fluid resistance in all valve classes, even if it is a reduced diameter ball valve, the fluid resistance is quite small. UPVC ball valve is a new material ball valve product developed according to the needs of various corrosive pipeline fluids. Advantages: The valve body is light weight, strong corrosion resistance, compact and beautiful appearance, light weight and easy installation, strong corrosion resistance, wide application range, hygienic non-toxic material, wear resistance, easy disassembly, simple and easy maintenance.
